Quick and safe change

- Trailer change in under 30 seconds
- Connect trailer/tool in less than 5 seconds
- No hoses that you may forget to connect/disconnect

Good comfort

- As you do not have to get in and out of the tractor
- Backlash-free drive - Easy to connect
- Up to 8 hydraulic couplings and up to 2 x 6 pin power plugs
-Option for ISOBUS jack and PTO

Safe working environment

- No people between machines
- No getting in and out of tractor
- No oil on hands and clothes

Future Hitch System

Connection directly from the cab

When connecting you just back up to the trailer, hoist up the module and press hydraulic hoses and power connectors together - all from the driver's seat.

Save time

Time is money, so why spend unnecessary amounts of it? With SIWI Combi-Hitch you can hitch the tractor lightning fast, without you having to get out of the cab.

Safe working environment

SIWI Combi-Hitch lowers the risk of injuries because you don’t have to get in and out of the tractor, with the risk of falling or being crushed between machines.

Backlash-free drive

SIWI Combi-Hitch is built around a ball hitch to ensure the best possible stability on the road and in the field. The system locks simultaneously with the interconnection of hydraulic and electrical connectors to ensure a safe and comfortable drive.

PTO

With SIWI Combi-Hitch you can switch between your tools and trailers. You can use SIWI Combi-Hitch for many tasks - everything from chopping to manure spreading.

The PTO gives new possibilities for the use of SIWI Combi-Hitch to for instance, the manure spreader, the seeder, the lime spreader, the feed mixer, and many more. In addition to using these independent machines, it also provides the ability to have SIWI Combi-hitch mounted on the bulk of your machines - so you can quickly change task.

Customers Perspective

(Click the settings icon at the bottom of the video screen. Click Subtitles/CC. Select english.)

Today we have many happy customers who use SIWI Combi-Hitch to make their farming more efficient. Customers are really excited about the system, which for them works really well.



We are very happy that we can keep our primary tracks and change at the end of the fields.

We can save one employee for driving next to the forage harvester and that driver can be hard to find when it's most busy. (translated)

//Klaus Kirkeby Nielsen - Kirkeby Maskinstation (Agricultural Contractor)

One system – Many possibilities

Siwi Combi-Hitch 800 serien. Traktormodul TM800 C3, Traktormodul TM800 C3RP, Maskinmodul MM800, Maskinmodul MM800 H, Vognmodul VM800 K80, Vognmodul VM800 K80P, Redskabsmodul C3, C3S

See the system in action

The system consists of:

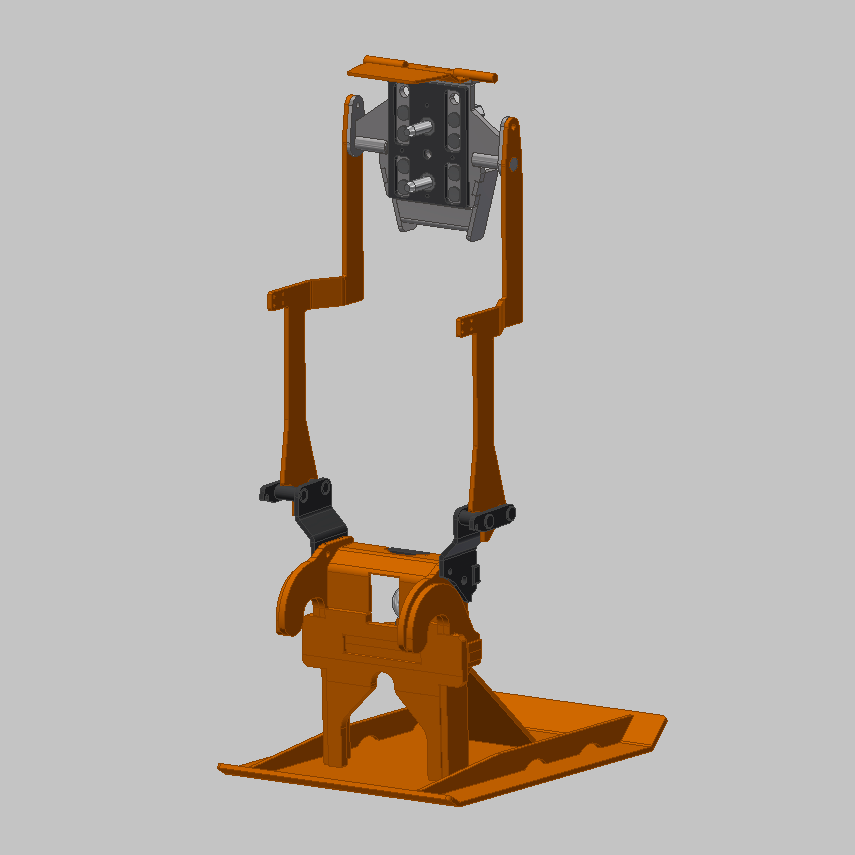

Vognmodul VM800 K80

Trailer Module VM800 K80

Trailer Module VM800 K80 suit K80 ball socket.

Technical details:

  • Up to 8 hydraulic couplings and up to 2 x 6 pin power plugs
  • With K80 ball
  • Large footplate
  • Max vertical load 4000 kg.
  • Maximum total weight of trailer 34000 kg.
  • Option for ISOBUS jack

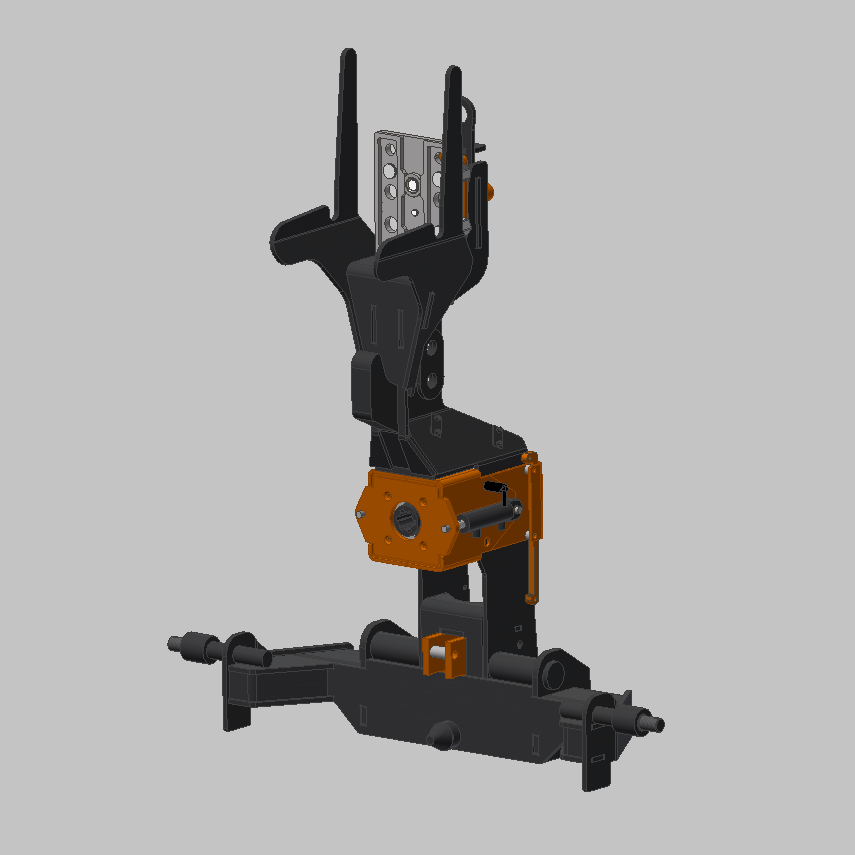

Traktormodul TM800 C3RP

Tractor Module TM800 C3P

Tractor  Module TM800 C3P. Mounted on the tractor 3 point.

Technical details:

  • Up to 8 hydraulic couplings and up to 2 x 6 pin power plugs.
  • Cat 3
  • Compatible with every trailer modules and implement modules
  • Available with PTO
  • Option for ISOBUS jack

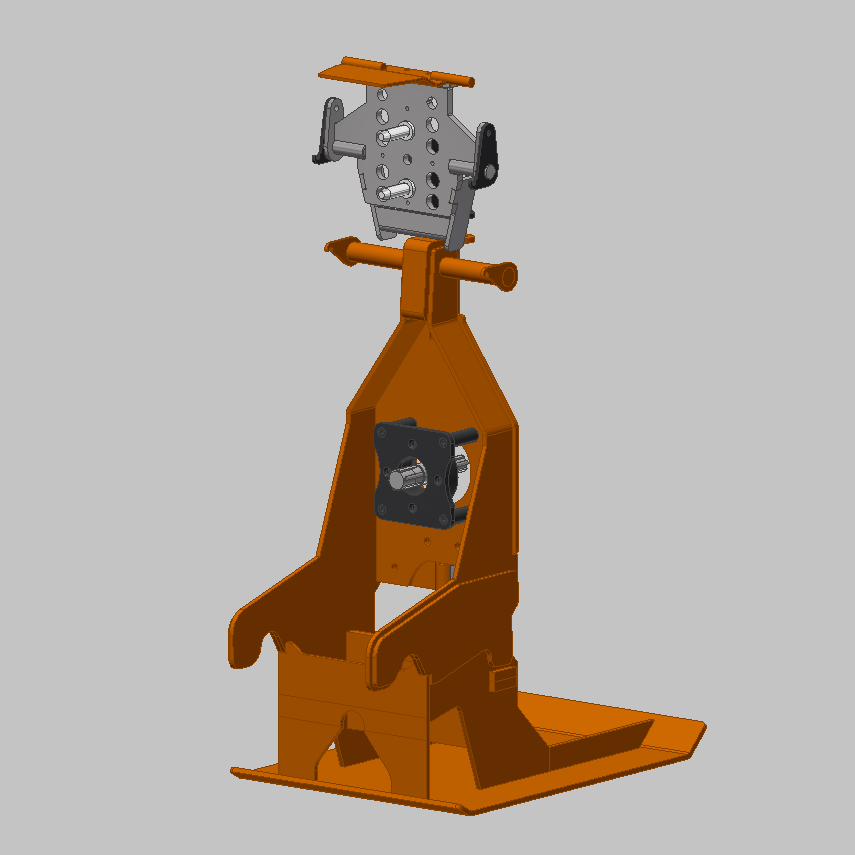

Vognmodul MM800 K80P

Trailer Module VM800 K80P

Trailer Module VM800 K80P with PTO. With K80 ball socket.

Technical details:

  • Up to 8 hydraulic couplings, up to 2 x 6 pin power plugs and PTO.
  • With K80 ball.
  • Large footplate.
  • Max vertical load 4000 kg.
  • Maximum total weight of trailer 34000 kg.
  • Option for ISOBUS jack

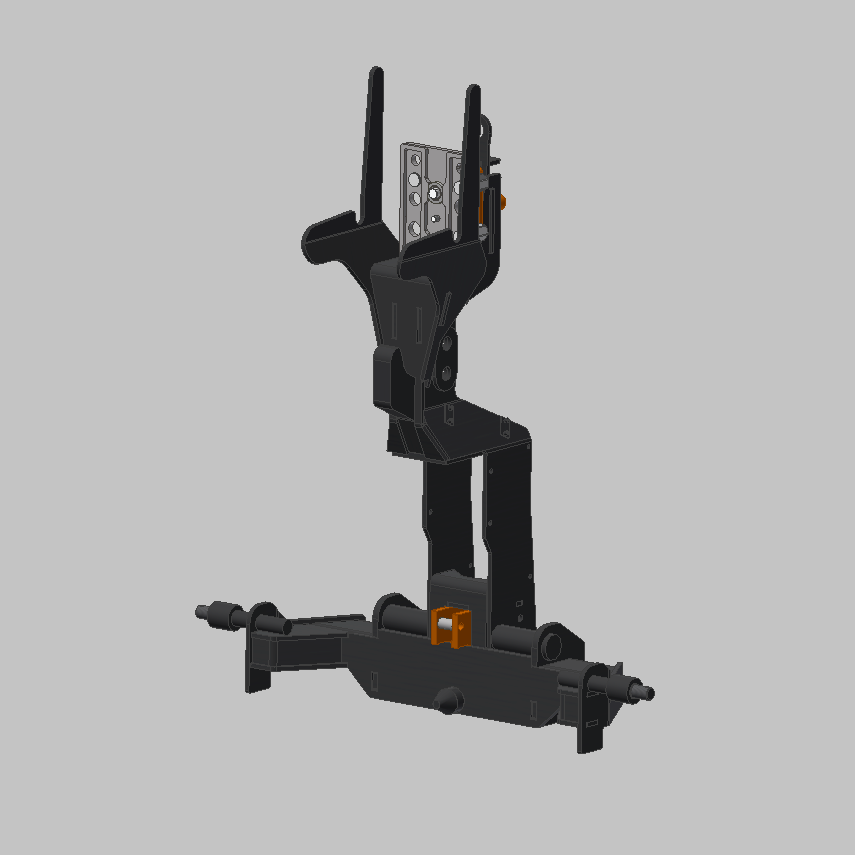

Traktormodul TM800 C3 Traktormodul TM800 C3

Tractor Module TM800 C3

Tractor  Module TM800 C3. Mounted on the tractor 3 point.

Technical details:

  • Up to 8 hydraulic couplings and up to 2 x 6 pin power plugs.
  • Cat 3
  • Compatible with trailer module VM800 K80
  • Option for ISOBUS jack

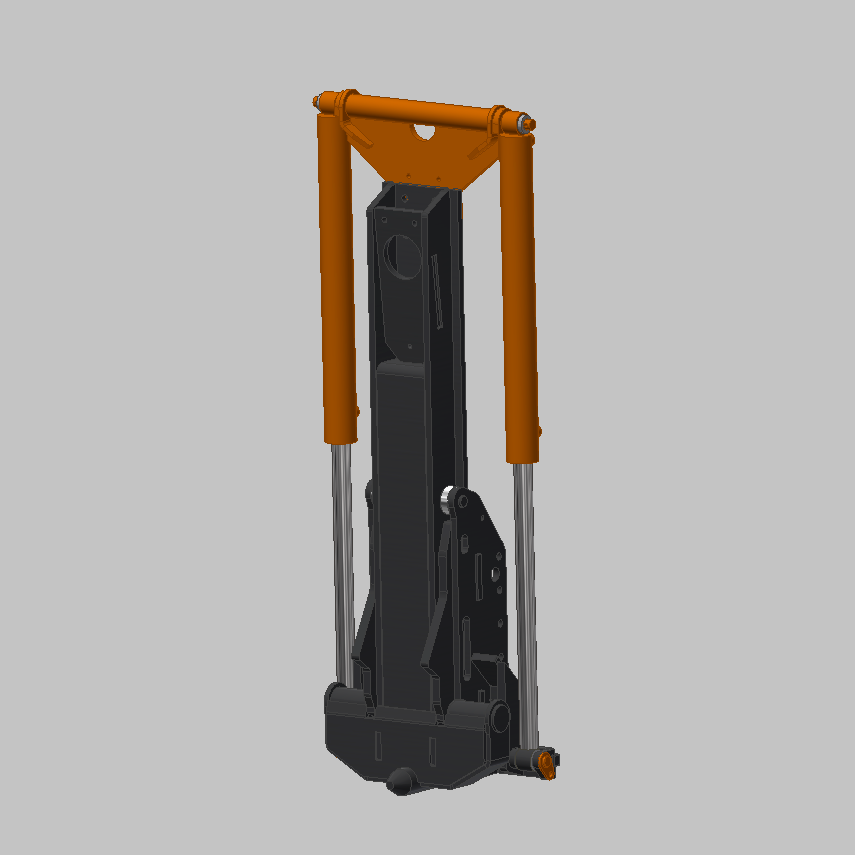

Maskinmodul MM 800

Machine Module MM 800

Machine Module MM 800 is mounted on fx the forage harvester or tractor.

Technical details:

  • Without hydraulic and electrical connector for trailer.
  • For example, forage harvester with no need for hydraulics and electrical outlet to the trailer on the field.
  • Lifting height 600 mm.
  • Capacity 5800 kg at 150 bar.
  • Compatible with trailer module VM800 K80

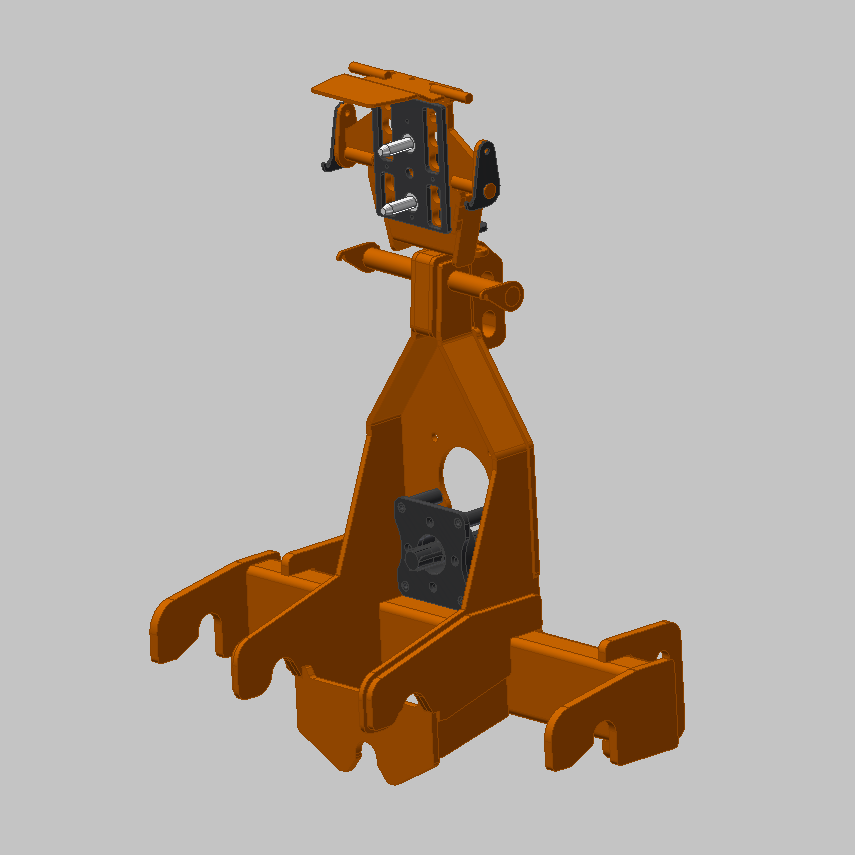

Redskabsmodul RM800 C3

Implement module module RM800 C3

Implement module RM800 C3 with PTO. To machines with 3 point.

Technical details:

  • Up to 8 hydraulic couplings, up to 2 x 6 pin power plugs and PTO
  • Cat 3
  • Option for ISOBUS jack

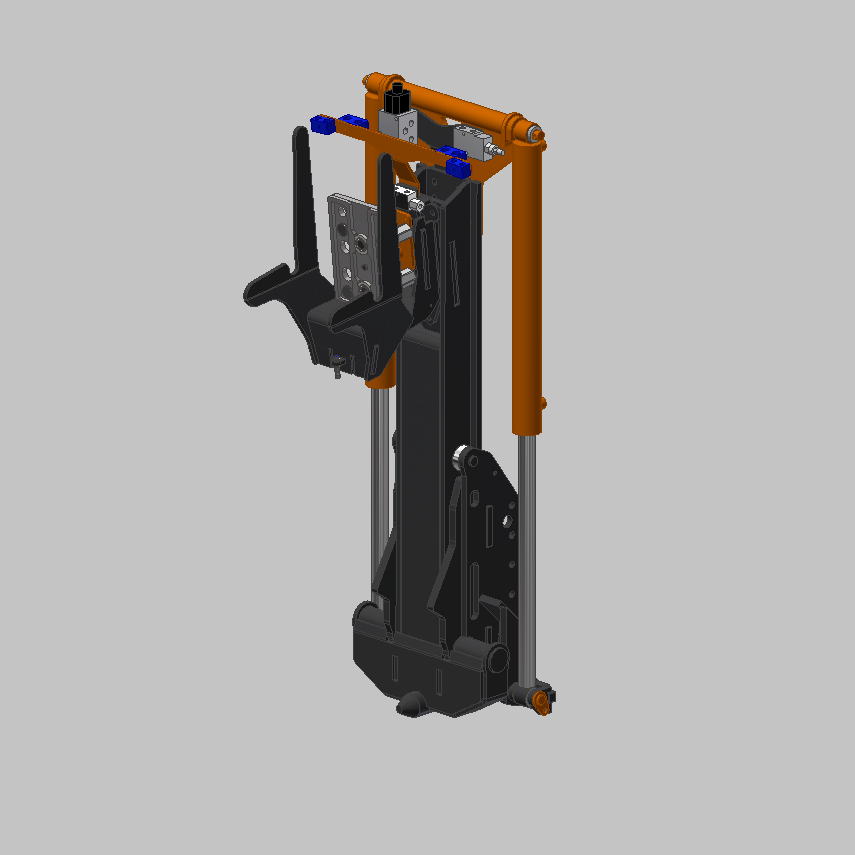

Maskinmodul MM 800 H

Machine Module MM 800-H

Machine Module MM 800-H is mounted on fx the forage harvester or tractor.

Technical details:

  • Up to 8 hydraulic couplings and up to 2 x 6 pin power plugs.
  • Lifting height 600 mm.
  • Capacity 5800 kg at 150 bar.
  • Compatible with trailer module VM800 K80
  • Option for ISOBUS jack
